Universal Paste Extruder
A low-cost 3D-printer concept with aluminum-extrusion structure, stepper-driven motion, and feed-system iteration from cartridge refill pauses toward continuous peristaltic delivery.
The failure mode drives the redesign.
The project is shown from multiple CAD views and then through physical feed-system hardware, with every view separated rather than combined into a collage.

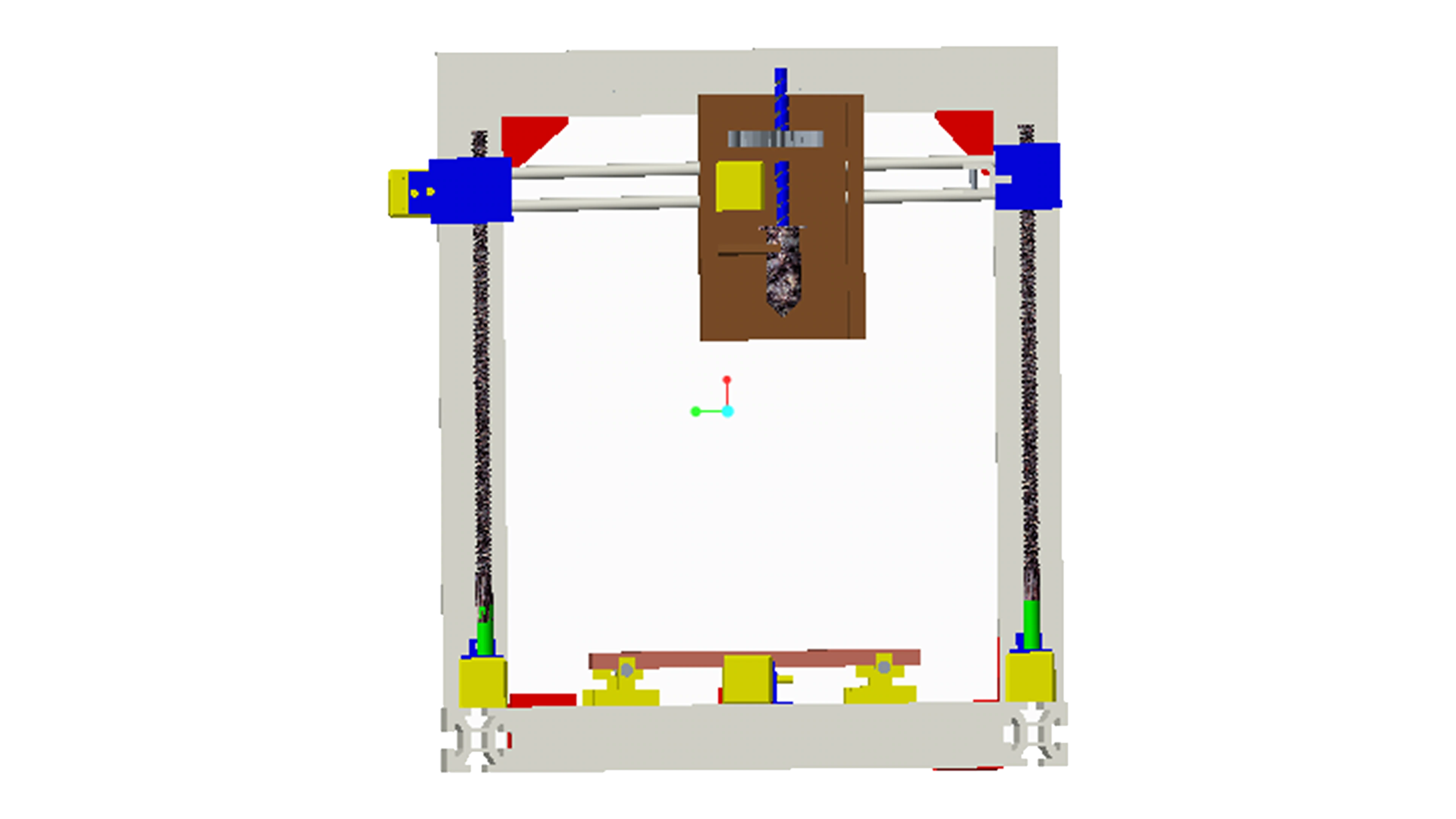

Define the complete printer frame.
The concept combines an aluminum-extrusion frame, stepper-driven motion, and a paste-extrusion subsystem.

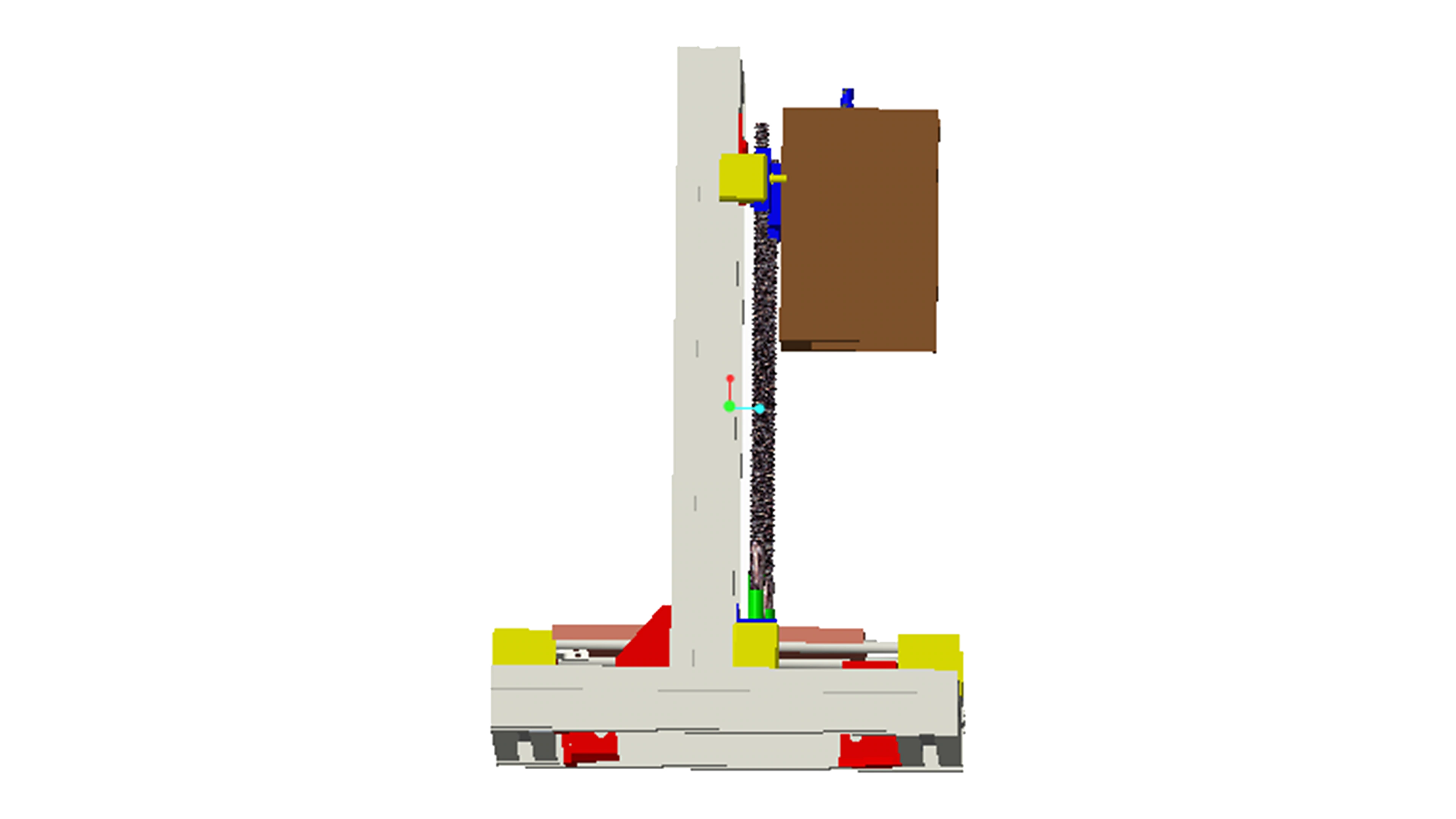

Check the side layout.
The side view exposes the relationship between the frame, vertical motion, and material-delivery hardware.

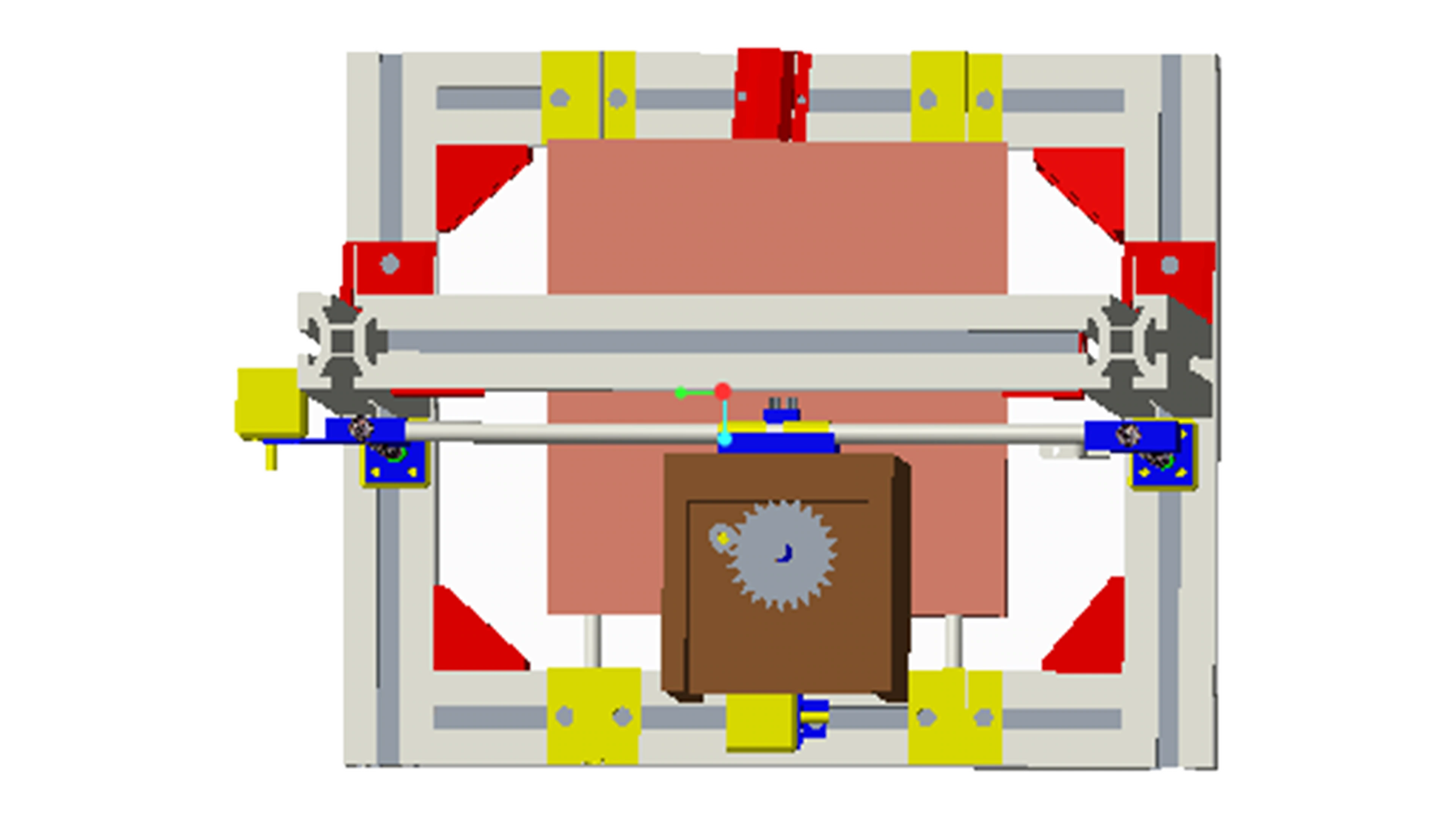

Review the top-down arrangement.
The top view clarifies the axis layout and structural placement within the printer frame.
Review the full isometric system.
The isometric assembly view shows how frame, motion system, table, and extrusion concept fit together.

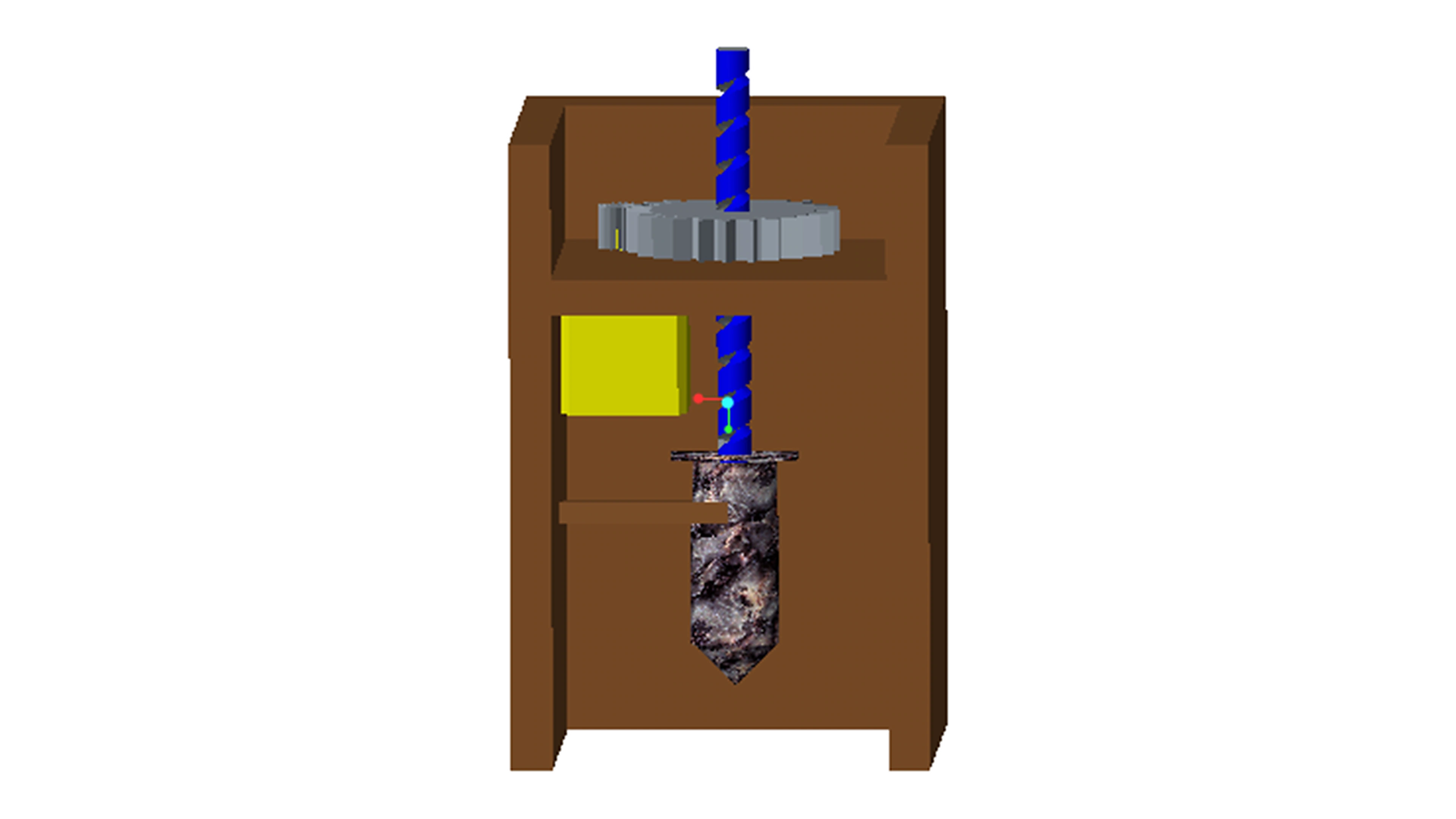

Start with the cartridge-based extruder.
The source architecture initially used a cartridge-based material feed. The portfolio identifies repeated refill/changeover pauses as the V1 challenge.

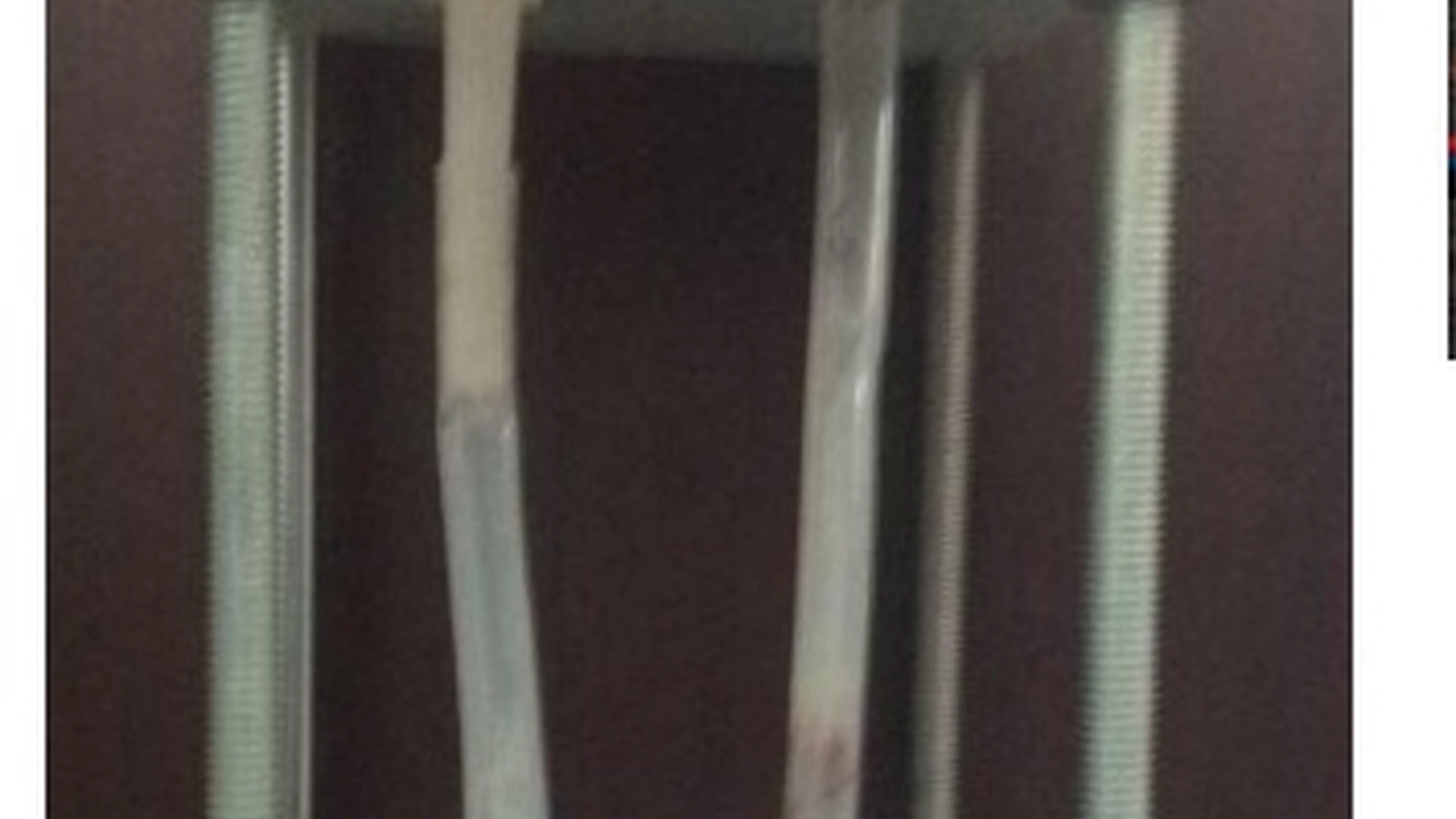

Build and evaluate the feed hardware.
Physical prototype hardware supported the feed-system iteration.

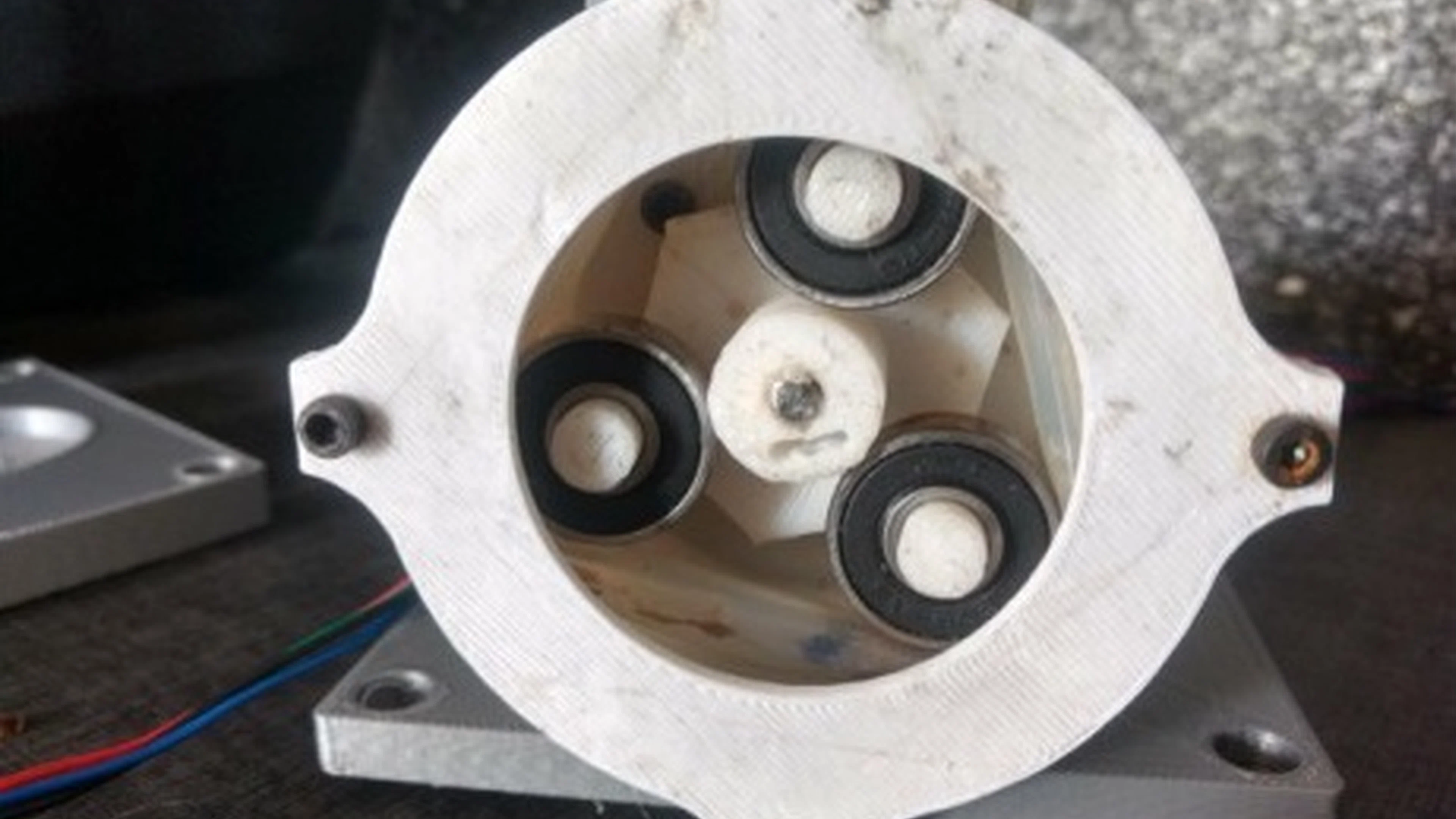

Move toward continuous material delivery.
The redesign uses a larger table-top reservoir and peristaltic pump to provide a more continuous material path to the nozzle.

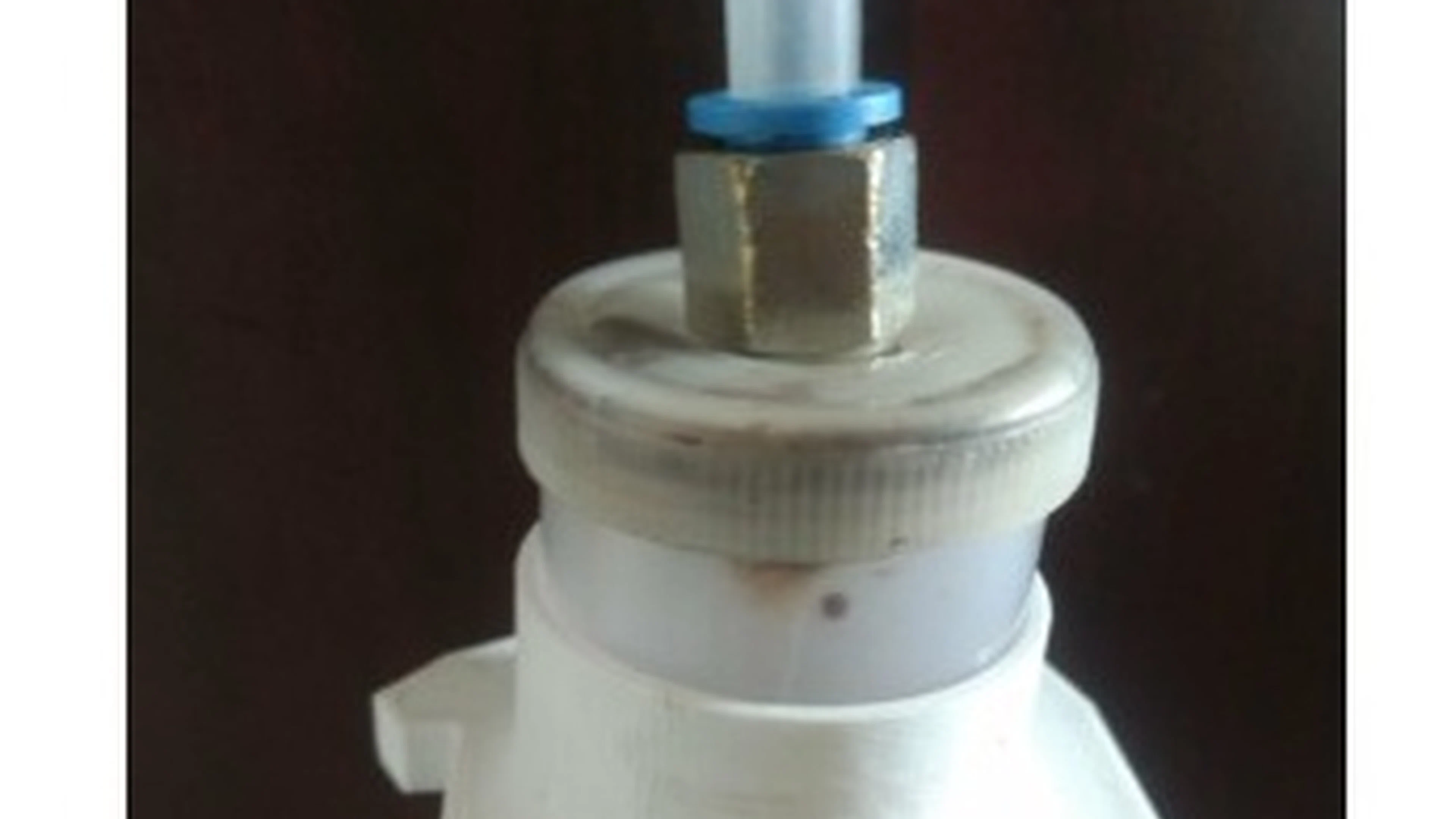

Resolve the output end of the material path.
The physical nozzle/interface prototype shows the downstream hardware used in the paste-delivery concept.
From refill interruptions toward a continuous feed path.
The redesign changes the feed-system architecture instead of only refining the original cartridge.
