Infill Density & Pattern Study
Dogbone specimens across multiple infill patterns, densities, and materials, followed by tensile-strength comparison.
Print → test → compare.
The portfolio describes dogbone specimens printed across multiple materials, patterns, and densities and then subjected to tensile testing.
The website separates pattern families instead of compressing them into one small collage.
Pattern groups,
separated.
The original multi-specimen comparison has been split into separate pattern-family figures.
Rectilinear

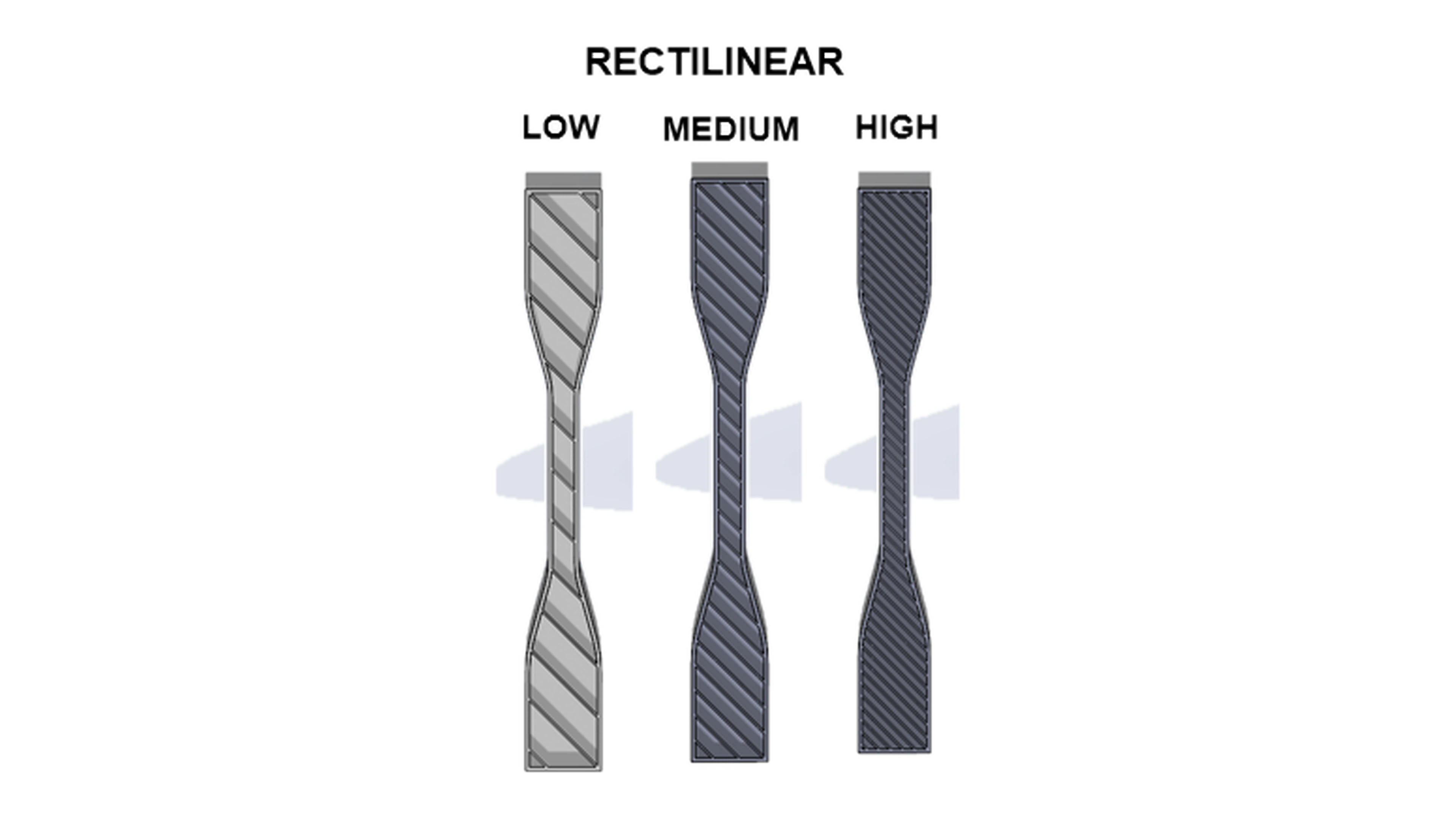

Low-, medium-, and high-density rectilinear dogbone geometry.
Triangle

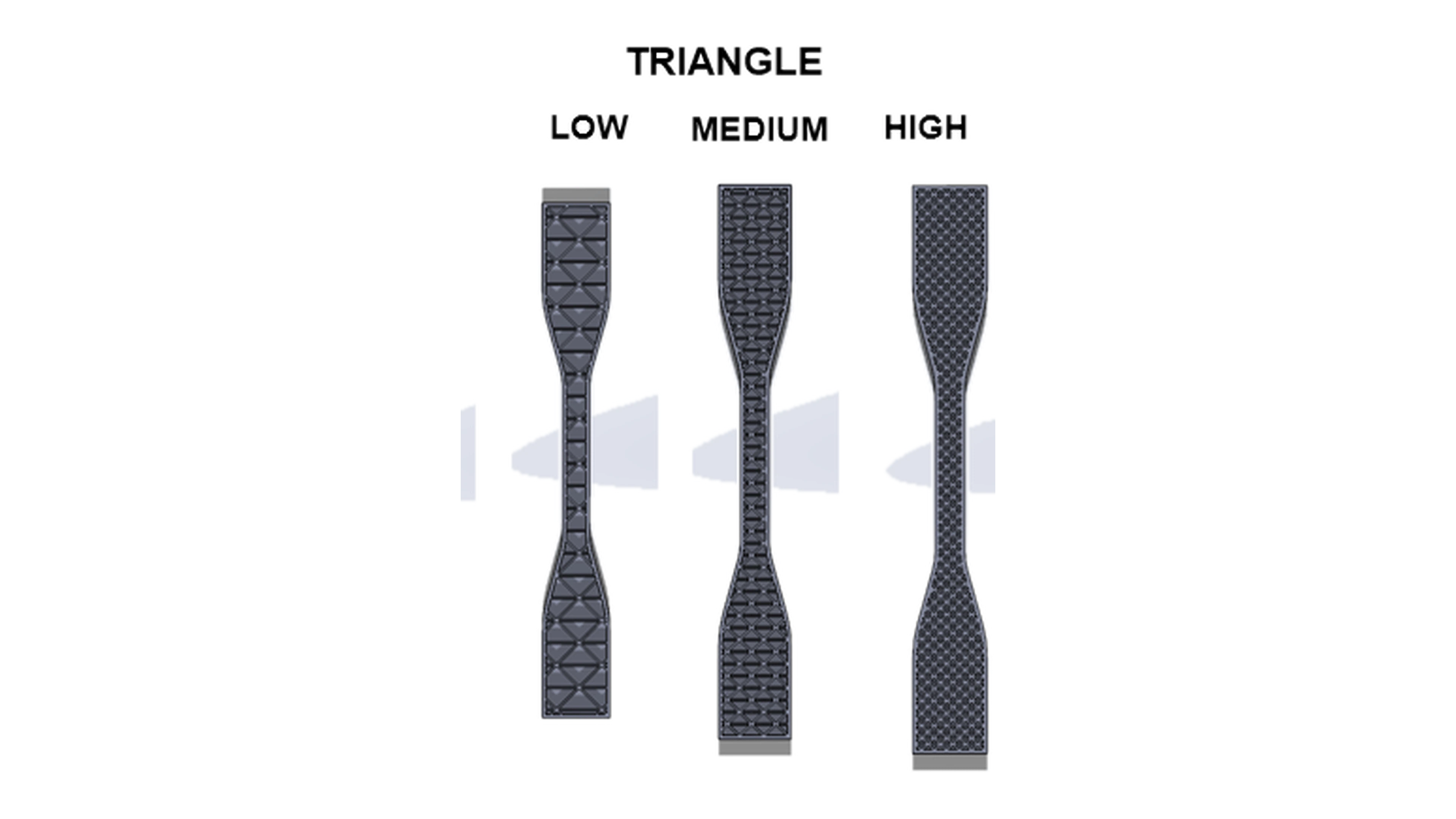

Low-, medium-, and high-density triangle infill specimens.
Honeycomb

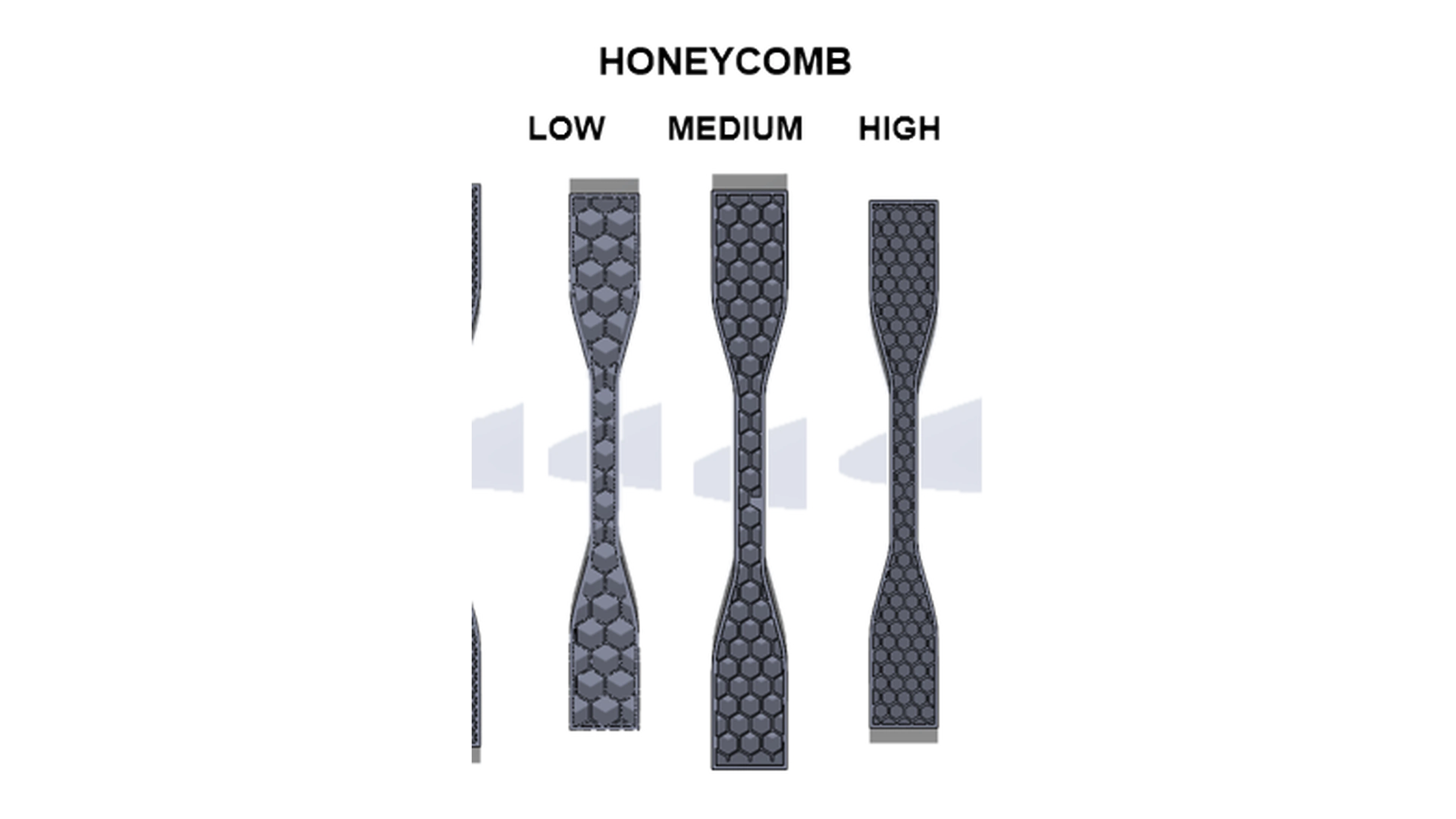

Low-, medium-, and high-density honeycomb specimens.
100% infill

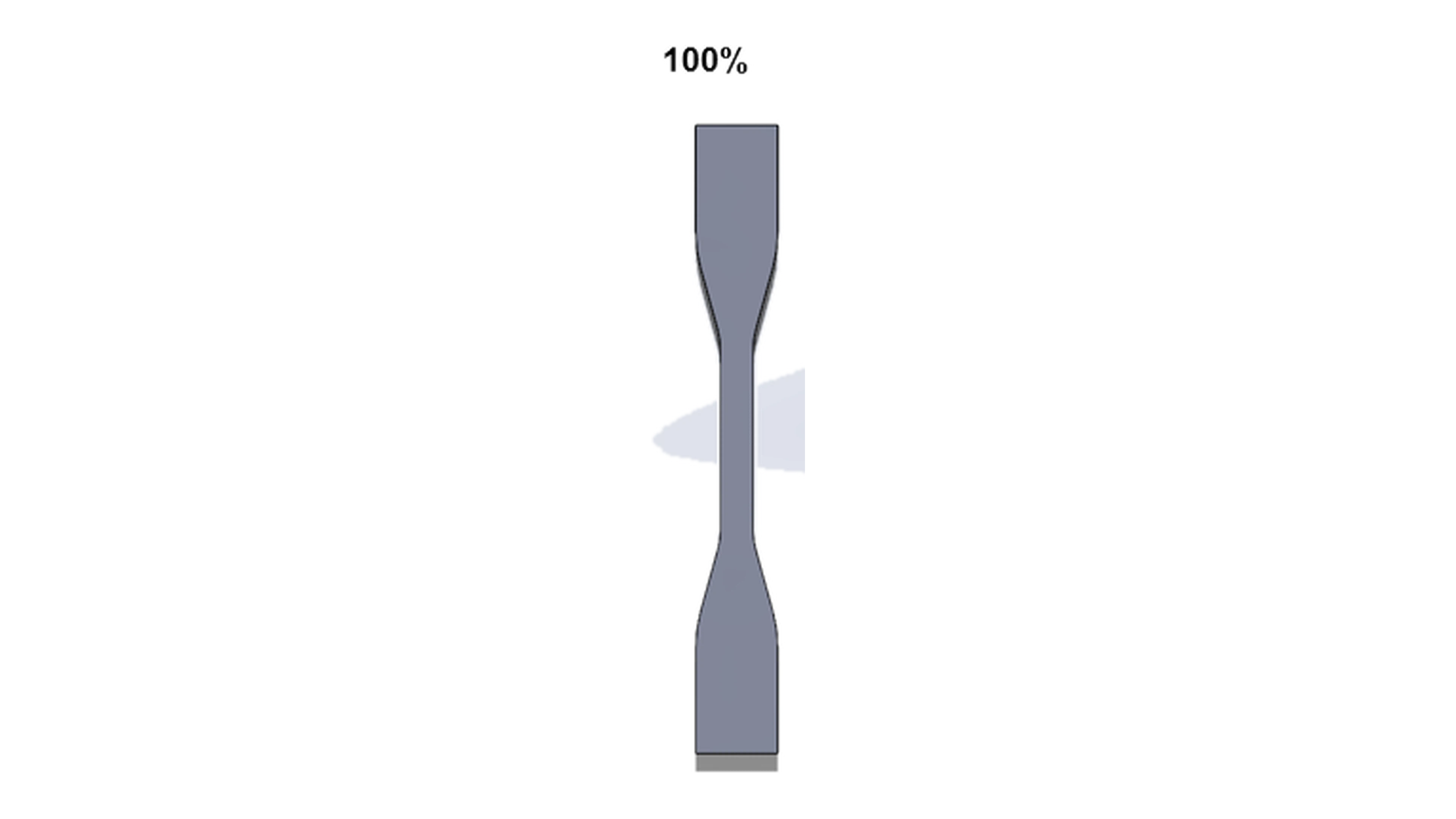

Solid reference specimen used in the design comparison.
Review the simulated specimen response.
The source folder includes a simulation result for a dogbone specimen, shown as a standalone figure.
Tensile-strength comparison

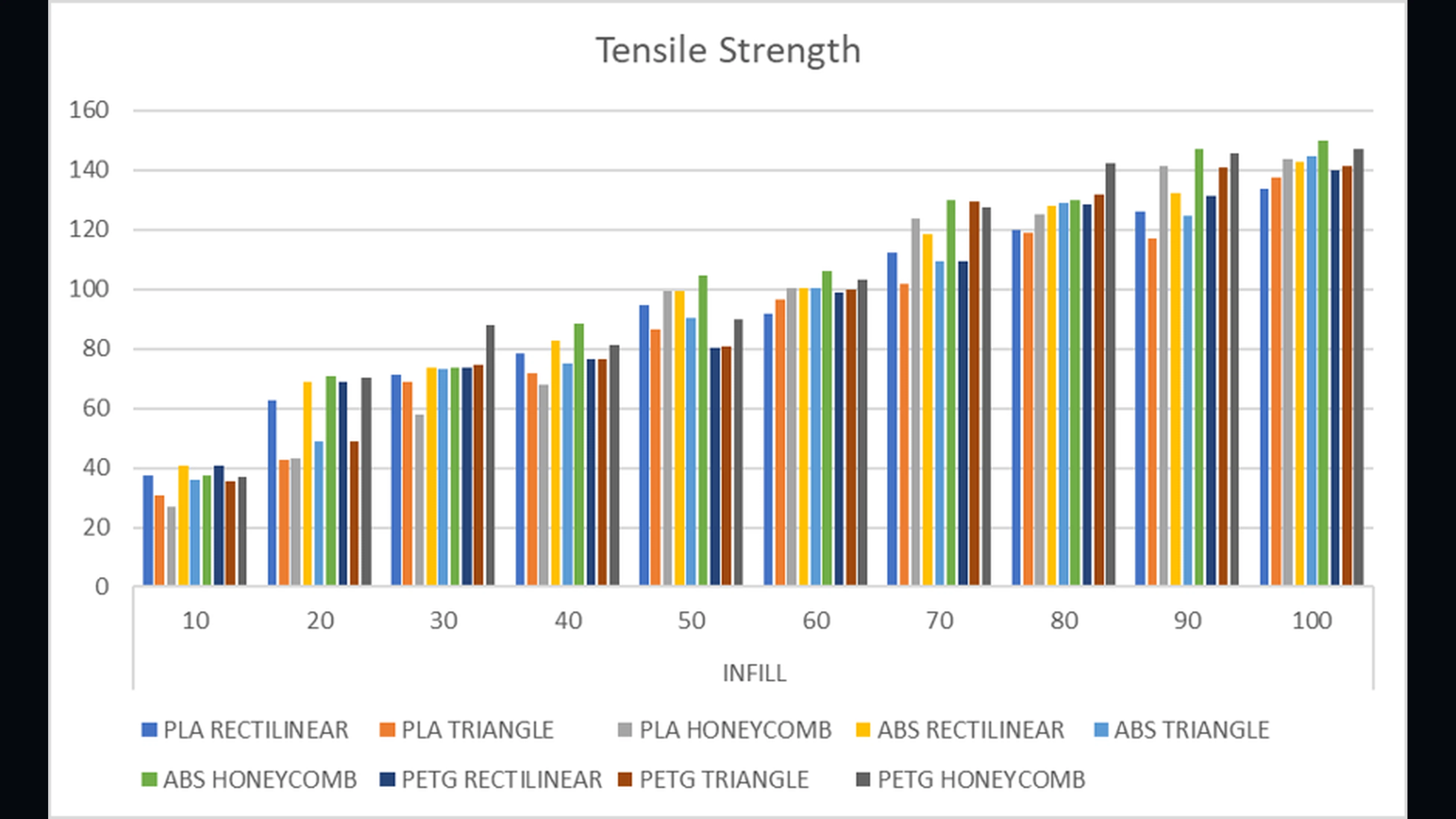

The source chart compares tensile strength across infill levels and material/pattern combinations.
Patterns, densities, and materials compared.
The source chart presents comparative tensile-strength results across the tested combinations.
